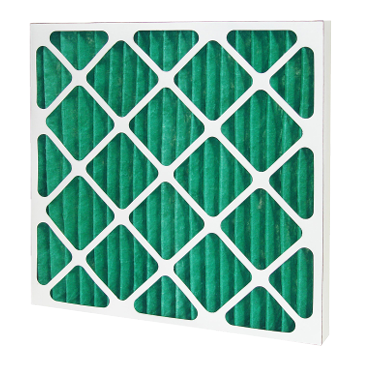

AeroPleat Eco CO65 - Pre Filter Cassettes

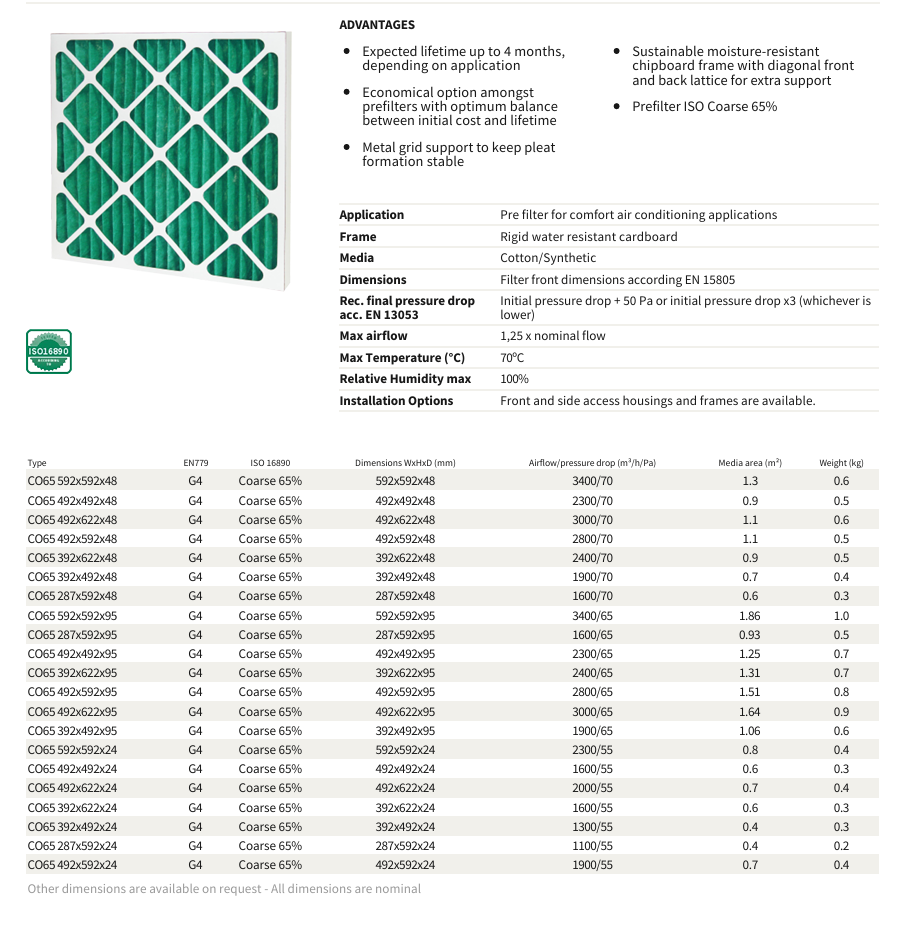

 ADVANTAGES
Expected lifetime up to 4 months, depending on application
Economical option amongst prefilters with optimum balance between initial cost and lifetime.
Metal grid support to keep pleat formation stable
Sustainable moisture-resistant chipboard frame with diagonal front and back lattice for extra support
Prefilter ISO Coarse 65%
Application - Pre filter for comfort air conditioning applications
Frame Rigid water resistant cardboard
Media Cotton/Synthetic
Dimensions Filter front dimensions according EN 15805
Rec. final pressure drop
acc. EN 13053
Initial pressure drop + 50 Pa or initial pressure drop x3 (whichever is
lower)
Max airflow 1,25 x nominal flow
Max Temperature (°C) 70ºC
Relative Humidity max 100%
Installation Options Front and side access housings and frames are available

Type

Dimensions WxHxD (mm)

EN779

ISO16890

Airflow/pressure drop (m³/h/Pa)

Media area (m²)

Weight (kg)

 CO65 592x592x48 G4 Coarse 65% 592x592x48 3400/70 1.3 0.6
 CO65 492x492x48 G4 Coarse 65% 492x492x48 2300/70 0.9 0.5
 CO65 492x622x48 G4 Coarse 65% 492x622x48 3000/70 1.1 0.6
 CO65 492x592x48 G4 Coarse 65% 492x592x48 2800/70 1.1 0.5
 CO65 392x622x48 G4 Coarse 65% 392x622x48 2400/70 0.9 0.5
 CO65 392x492x48 G4 Coarse 65% 392x492x48 1900/70 0.7 0.4
 CO65 287x592x48 G4 Coarse 65% 287x592x48 1600/70 0.6 0.3
 CO65 592x592x95 G4 Coarse 65% 592x592x95 3400/65 1.86 1.0
 CO65 287x592x95 G4 Coarse 65% 287x592x95 1600/65 0.93 0.5
 CO65 492x492x95 G4 Coarse 65% 492x492x95 2300/65 1.25 0.7
 CO65 392x622x95 G4 Coarse 65% 392x622x95 2400/65 1.31 0.7
 CO65 492x592x95 G4 Coarse 65% 492x592x95 2800/65 1.51 0.8
 CO65 492x622x95 G4 Coarse 65% 492x622x95 3000/65 1.64 0.9
 CO65 392x492x95 G4 Coarse 65% 392x492x95 1900/65 1.06 0.6
 CO65 592x592x24 G4 Coarse 65% 592x592x24 2300/55 0.8 0.4
 CO65 492x492x24 G4 Coarse 65% 492x492x24 1600/55 0.6 0.3
 CO65 492x622x24 G4 Coarse 65% 492x622x24 2000/55 0.7 0.4
 CO65 392x622x24 G4 Coarse 65% 392x622x24 1600/55 0.6 0.3
 CO65 392x492x24 G4 Coarse 65% 392x492x24 1300/55 0.4 0.3
 CO65 287x592x24 G4 Coarse 65% 287x592x24 1100/55 0.4 0.2
 CO65 492x592x24 G4 Coarse 65% 492x592x24 1900/55 0.7 0.4
