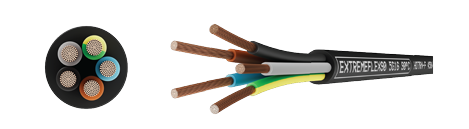

H07RN-F Cable – Heavy-Duty Rubber Flexible Cable

H07RN-F is a heavy-duty, flexible rubber cable designed for power supply to mobile or portable equipment in demanding industrial and outdoor environments. It features stranded copper conductors, rubber insulation, and a chloroprene rubber (or equivalent) outer sheath, offering excellent resistance to abrasion, oils, mechanical stress, and weather.

✅

Key Features:

  • Voltage Rating: 450/750V
  • Temperature Range:

    • Fixed installation: –40°C to +85°C
    • Mobile use: –25°C to +60°C
  •
  • Conductor: Class 5 flexible stranded plain copper
  • Insulation: EPR (Ethylene Propylene Rubber)
  • Sheath: Heavy-duty rubber (often chloroprene, e.g. PCP) – black in color
  • Flame Retardant: IEC 60332-1-2 compliant
  • Standards: EN 50525-2-21, IEC 60245-4
  • Resistance: Oil, UV, water, ozone, mechanical impact, and some chemicals
  • RoHS Compliant

⚙️

Applications:

  • Construction sites and temporary power supplies
  • Portable generators and lighting systems
  • Industrial machinery and welding equipment
  • Audio/visual and stage equipment
  • Agricultural, mining, and marine environments

💡 H07RN-F is particularly suitable for outdoor or damp environments, including direct laying on the ground (temporary), thanks to its robust rubber construction.

🛠

Advantages:

  • High flexibility for easy handling and movement
  • Resistant to mechanical wear and tear
  • Suitable for indoor and outdoor use, including wet or oily conditions
  • Long service life even under demanding use

H07RN-F cable is the industry standard for reliable, rugged power connections in tough environments, making it ideal for construction, industrial, and event-based temporary installations.
