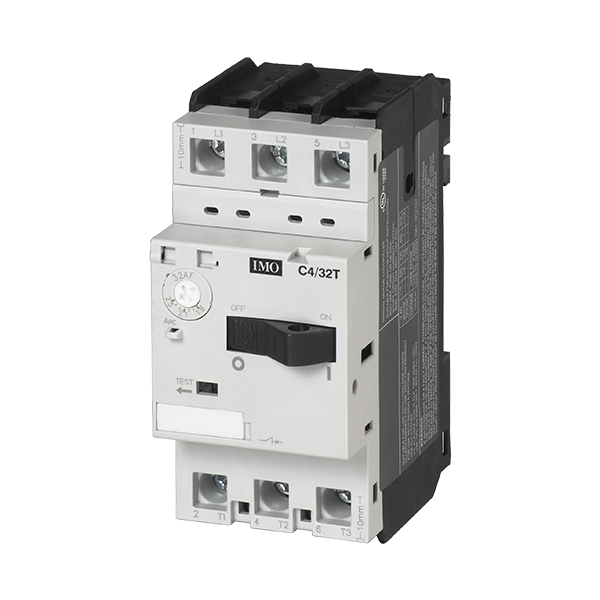

C4/32T - Thermal Magnetic Motor Circuit Breaker 0.1-32A options (Toggle)

C4 Motor Circuit Breakers

The C4/32T IMO motor circuit breakers are compact, reliable protection devices specifically designed for safeguarding electric motors and associated circuits from overloads, short circuits, and phase failures. These circuit breakers combine the functionalities of a motor protection switch and a thermal-magnetic circuit breaker into one unit, making them ideal for use in motor control centers, industrial automation systems, and machinery applications.

Key Features:

• Current Rating: Up to 32A (depending on model)
• Trip Mechanism: Thermal (overload) and magnetic (short circuit) protection
• Breaking Capacity: High short-circuit breaking capacity to ensure protection under fault conditions
• Adjustable Overload Settings: Allows precise tuning to match motor characteristics
• Compact Design: DIN-rail mountable, space-saving format for panel installation
• Phase Failure Sensitivity: Protects motors from damage caused by phase loss
• Manual Reset & ON/OFF Control: Provides local control for motor start/stop functions
• Accessory Compatibility: Can be fitted with auxiliary contacts, shunt trips, and under-voltage releases

Applications:

• Motor protection in industrial environments
• HVAC systems
• Conveyor systems
• Pumps, fans, and compressors
• Panel builders and OEM machinery

The C4/32R series offers a cost-effective and efficient solution for comprehensive motor circuit protection, ensuring minimal downtime and enhanced safety across various motor-driven systems.

Key Features
 • Motor protection rating up to 100Amps
 • Short circuit breaking capacity up to 100kA
 • Phase failure protection
 • DIN rail mounting
 • Wide range of accessories
