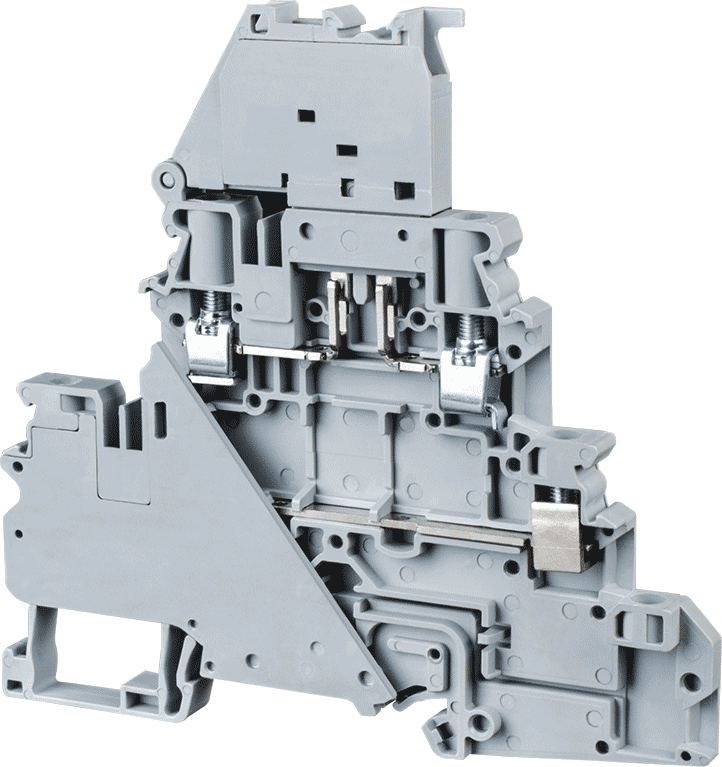

Connectwell CYDLF4L6-60V, 4 mm², Double-level fuse and feed-through terminal block, with 6–60 V AC/DC LED, Grey
In stock
The Connectwell CYDLF4L6-60V is a double-level fuse and feed-through terminal block in the CY series, designed for 35 mm DIN-rail control-panel wiring. It uses screw-clamp connections and a polyamide 6.6 housing.
- Rated conductor size: 4 mm²
- Conductor range: 0.2–4 mm² stranded; 0.2–6 mm² solid
- AWG range: 24–10 AWG
- Connections and levels: 4 connections across 2 levels
- Dimensions: 6 mm wide × 94.5 mm long; rail height 90.9 mm / 98.4 mm
- Colour: Grey
- Electrical rating: IEC: 500 V; fuse level 10 A; feed-through level 32 A; UL/CSA: 300 V; fuse level 10 A; feed-through level 30 A
- Fuse size: 5 × 20 mm
- LED version: 6–60 V AC/DC indication
- Wire stripping length: 9 mm
- Tightening torque: 0.5 Nm
- Standards: IEC 60947-7-3; UL 1059; CSA C22.2 No. 158
- Special function: Fuse carrier on the upper level and a feed-through connection on the lower level.
Suitable for industrial control panels, machinery, power distribution, instrumentation and automation systems where secure, serviceable DIN-rail connections are required.
