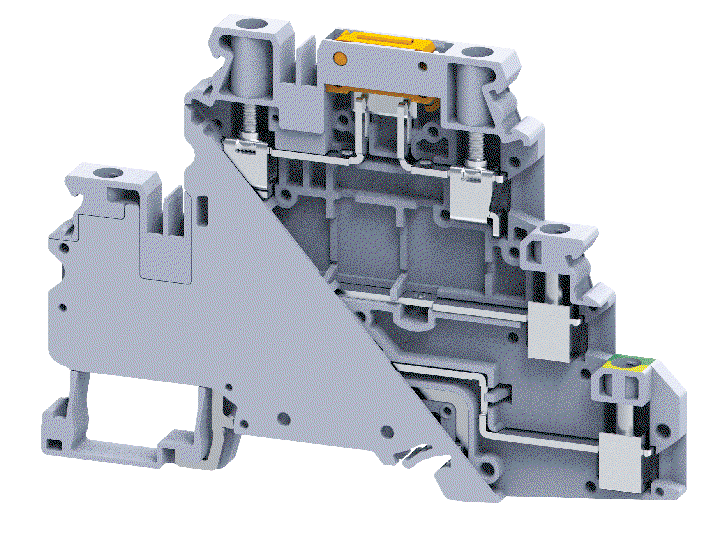

Connectwell CYDLGK4EX, 4 mm², Double-level knife-disconnect, feed-through and ground terminal block, Green/Yellow, For Ex e applications
In stock
The Connectwell CYDLGK4EX is a double-level knife-disconnect, feed-through and ground terminal block in the CY series, designed for 35 mm DIN-rail control-panel wiring. It uses screw-clamp connections and a polyamide 6.6 housing.
- Rated conductor size: 4 mm²
- Conductor range: 0.2–4 mm² stranded; 0.2–6 mm² solid
- AWG range: 24–10 AWG
- Connections and levels: 4 connections across 2 levels
- Dimensions: 6 mm wide × 94.5 mm long; rail height 67.6 mm / 75.1 mm
- Colour: Green/Yellow
- Electrical rating: IEC: 500 V; disconnect level 28 A; feed-through level 32 A; protective earth; UL/CSA: 300 V; disconnect level 26 A; feed-through level 30 A
- Wire stripping length: 9 mm
- Tightening torque: 0.5 Nm
- Standards: IEC 60947-7-1 / IEC 60947-7-2; UL 1059
- Special function: Upper knife disconnect, lower feed-through and an additional protective-earth connection.
- Hazardous-area version: For Ex e applications. Use only in accordance with the applicable approval, certificate and installation requirements.
Suitable for industrial control panels, machinery, power distribution, instrumentation and automation systems where secure, serviceable DIN-rail connections are required.
