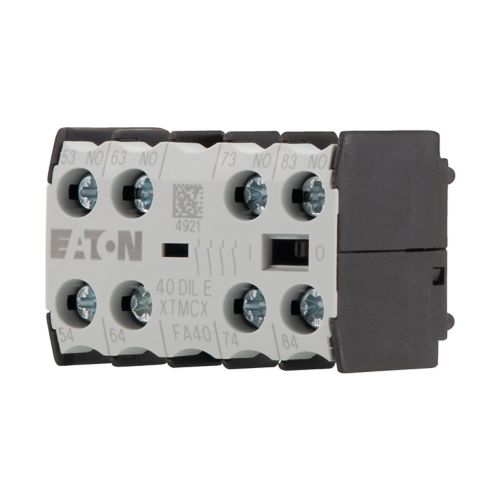

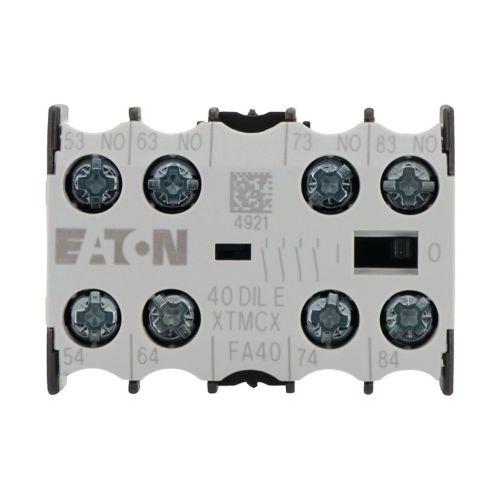

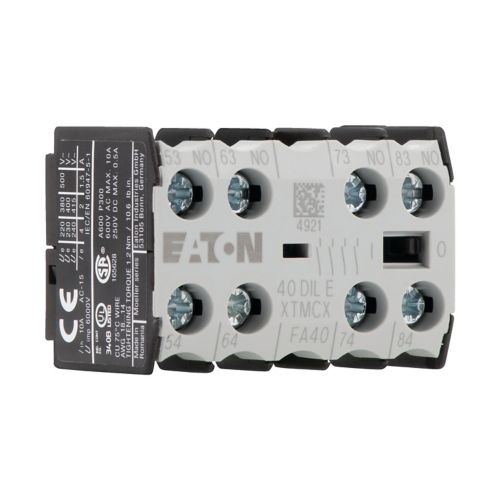

Eaton Moeller® - DILE Auxiliary contact module - 010304 - 4 pole, 4 N/O, Front fixing, Screw terminals, DILE(E)M, DILER
In stock
|
Product Name |
Eaton Moeller® series DILE Accessory Auxiliary contact module |
|
Catalog Number |
010304 |
|
Model Code |
40DILE |
|
EAN |
4015080103042 |
|
Product Length/Depth |
36 mm |
|
Product Height |
32 mm |
|
Product Width |
45 mm |
|
Product Weight |
0.04 kg |
|
Certifications |
CE |
Short-circuit rating
| Short-circuit protection rating |
10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts
|
| Short-circuit protection rating without welding |
6 A gG/gL, 500 V, Max. Fuse, Contacts
|
Conventional thermal current Ith
| Conventional thermal current Ith of auxiliary contacts (1-pole, open) |
10 A
|
Switching capacity
| Switching capacity (auxiliary contacts, general use) |
10 A, 600 V AC, (UL/CSA)
0.5 A, 250 V DC, (UL/CSA) |
| Switching capacity (auxiliary contacts, pilot duty) |
A600, AC operated (UL/CSA)
P300, DC operated (UL/CSA) |
Contacts
| Code number |
80E in combination with DILER-40(-G)
71 in combination with DILER-31(-G) 62 in combination with DILER-22 |
| Control circuit reliability |
< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
|
| Number of contacts (change-over contacts) |
0
|
| Number of contacts (normally closed contacts) |
0
|
| Number of contacts (normally open contacts) |
4
|
Design verification
| Equipment heat dissipation, current-dependent Pvid |
0 W
|
| Heat dissipation capacity Pdiss |
0 W
|
| Heat dissipation per pole, current-dependent Pvid |
0.24 W
|
| Rated operational current for specified heat dissipation (In) |
4 A
|
| Static heat dissipation, non-current-dependent Pvs |
0 W
|
