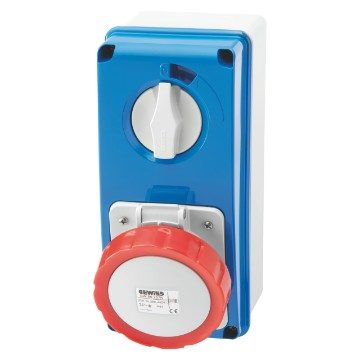

GW66220N - Vertical Fixed Socket Outlet - 3P+N+E 32A 346-415V - 50-60HZ - IP67

GW66220N - Vertical Fixed Socket Outlet - 3P+N+E 32A 346-415V - 50-60HZ - IP67

Type Vertical Thermo-pressure with ball 125 °C (IB socket) - 80 °C (bottom)
IP degree IP67 No. of poles 3P+N+E
Mechanical resistance IK08 Frequency 50/60 Hz
Operating temperature -25 +40 °C Protection NO (SBF)
With back-mounting box Yes Electrocod 2222
Glow wire test 850 °C (IB socket) - 650 °C (bottom) Colour Red
IB socket outlet rated current (In) 32 A Rated current (A) 32
Reference h 6 Rated voltage 380 - 415 V
