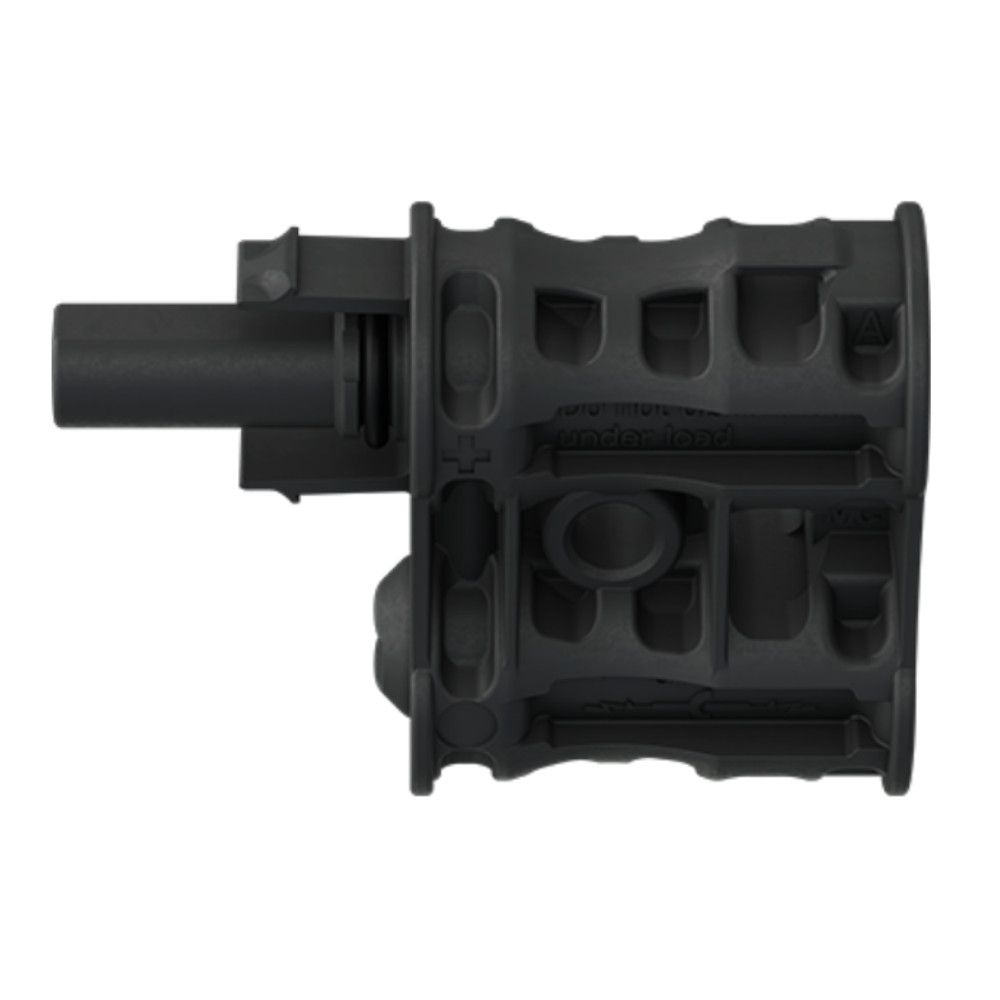

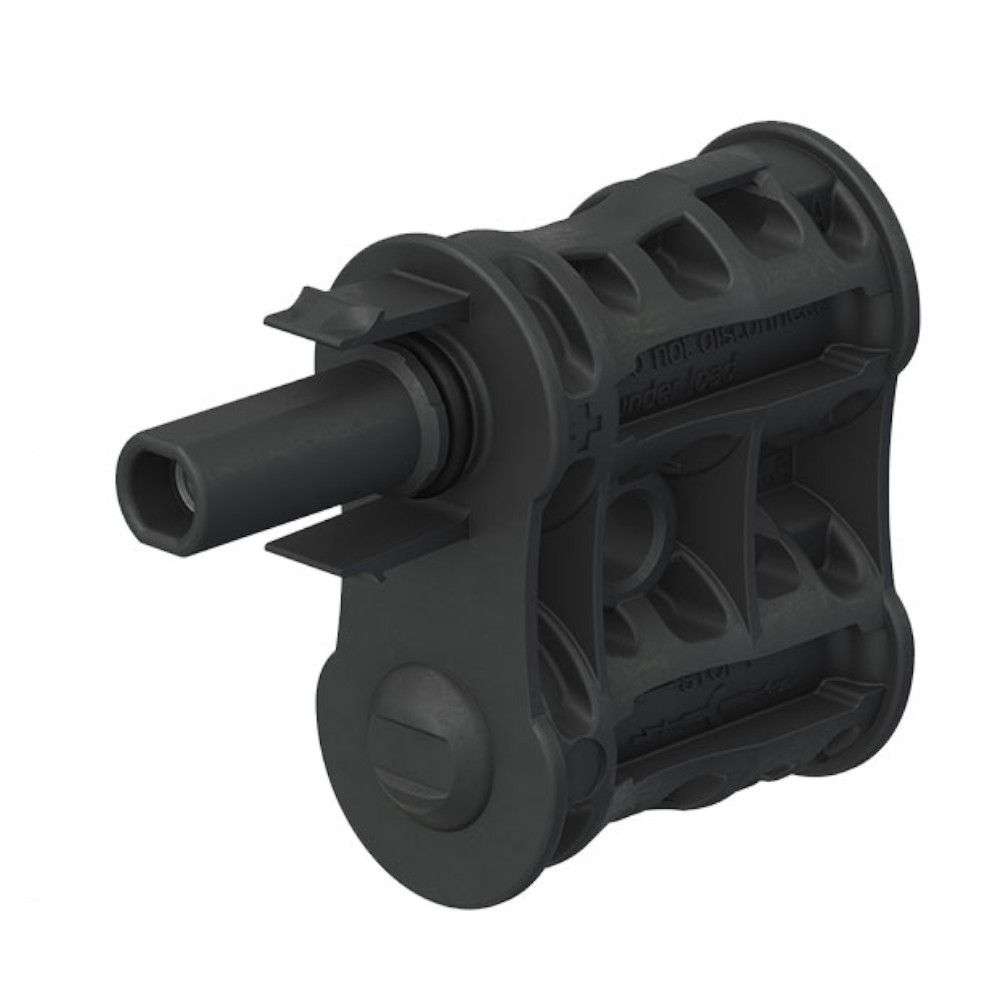

Staubli - MC4 Evo 2 Branch Connector - 4-6mm² - Male

Staubli MC4-Evo 2 Male Branch Connector

World's first dual certified DC 1500 V branch connector.

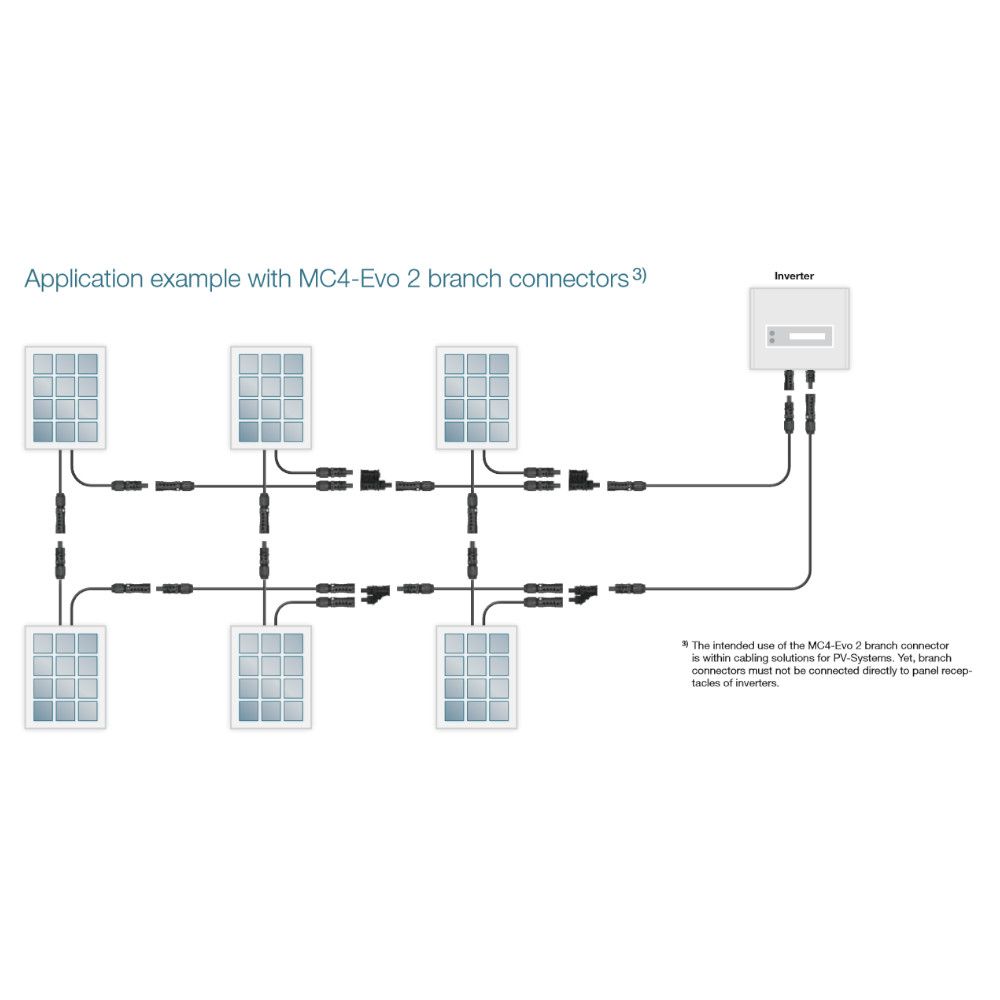

Stäubli MC4-Evo 2 Branch Connectors are 2 to 1 connectors that allow for a safe and simple parallel or serial-parallel connection of PV modules.

Available in either 2 male to 1 female, or 2 female to 1 male, and pluggable with single-pole MC4 and MC4-Evo 2 connectors.

Staubli MC4s are often viewed as the standard connector in the solar energy industry.

FEATURES:

• Plug-and-play: no crimping or torqueing necessary

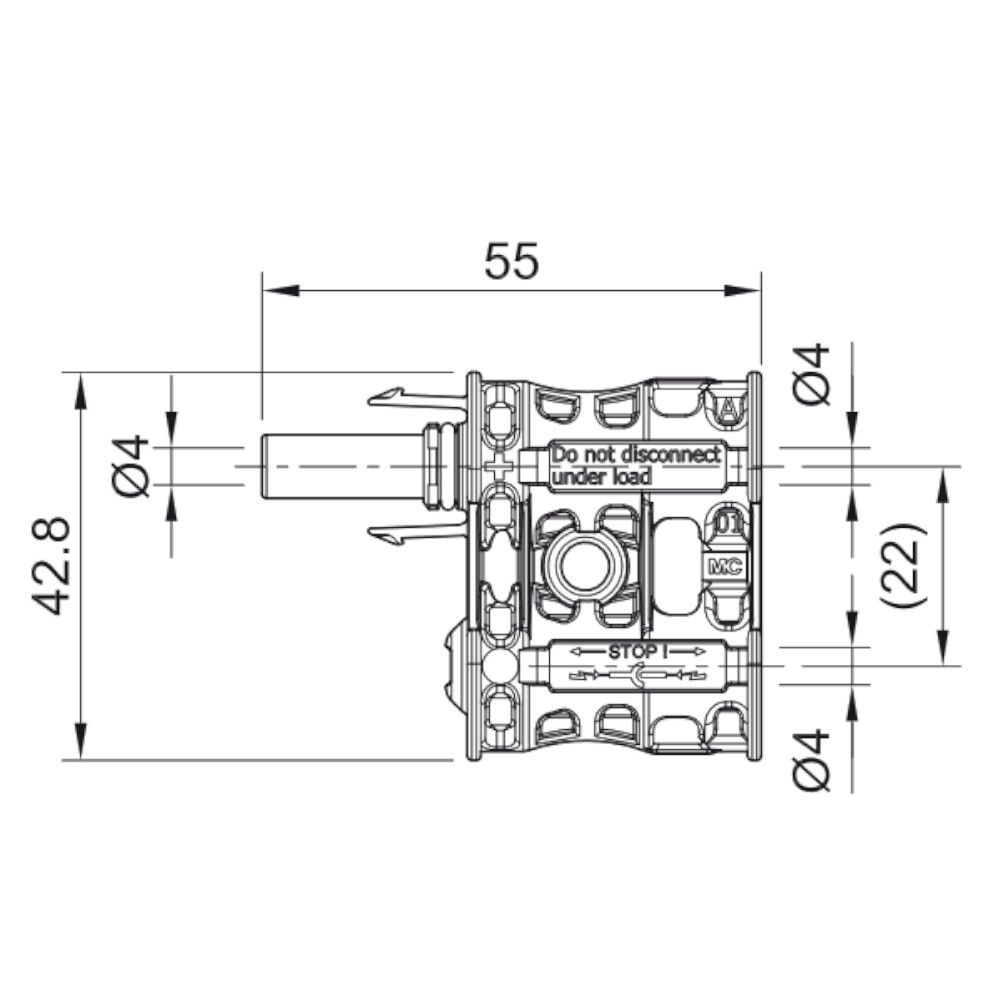

• Versatility and compact dimensions
• Mating compatibility with original MC4 and MC4-Evo 2 cable connectors
• DC 1500 V according to IEC 62852 and UL 6703
• Resistance to salt mist spray
• Proven MULTILAM Technology with high long-term stability which ensures consistently low performance loss throughout the entire service life of the connector
• IP68 rating

Note: Branch connectors must not be connected directly to panel receptacles of inverters.
