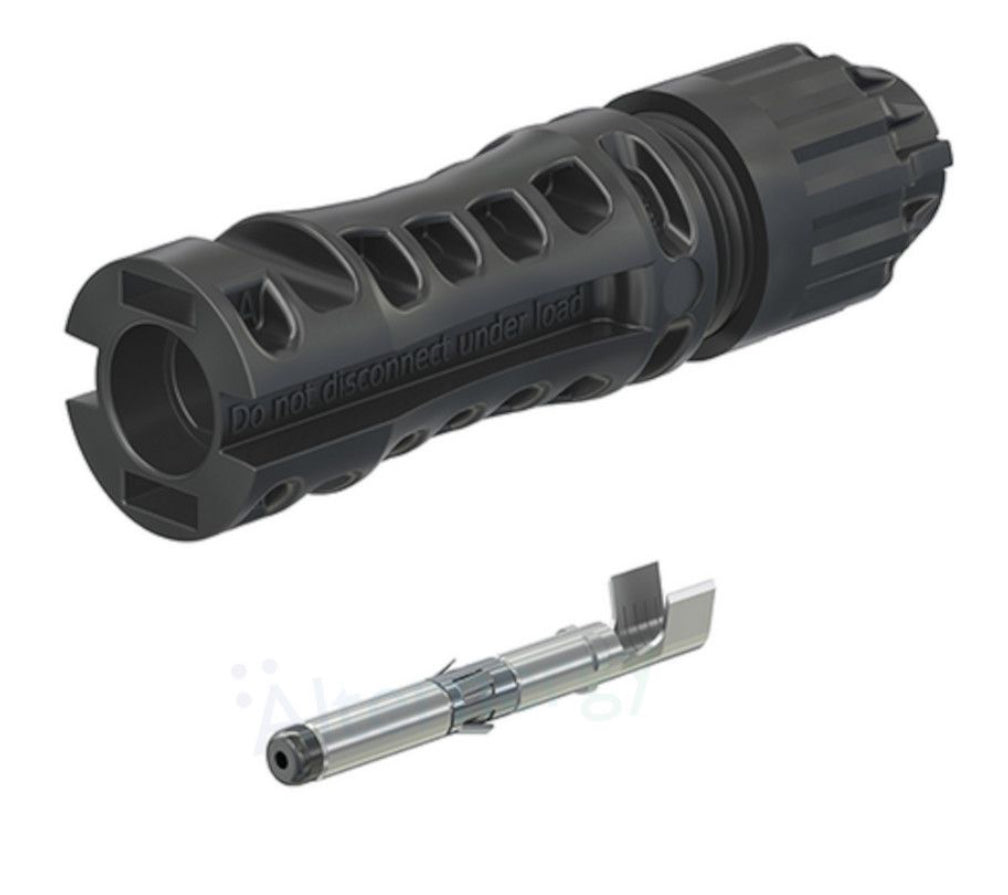

Staubli MC4 Evo 2A Connector - 4-6mm² - Female

The MC4-Evo 2 is the latest addition to the Multi-Contact Stäubli PV connector portfolio. Great for high voltage applications, these new connectors are internationally certified and are approved for 1500 V DC (IEC, JET), 1500 V DC (UL) unrestricted access.

MC4-Evo 2 connectors are suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray.

FEATURES:

• Snap-in lock
• MULTILAM technology
• Cable cross-section: 4-6 mm²
• Female cable coupler
• Cable outer diameter: 6.4-8.4 mm
• Rated current: 45A 4mm² cable ;  53A 6mm² cable
• Rated voltage: 1500V
• Termination type: Crimping
• IP Protection:  IP68
• Flame class: UL94-V0
• TÜV-Rheinland certified
