YY Cable - 1.5mm - Priced per 100M

PVC CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1
GREEN/YELLOW,

GREY SHEATH GEN

TO BS EN 50525-2-11/VDE0250 300/500V

(NO UV RESISTANCE)

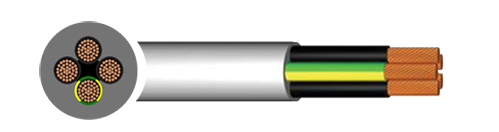

YY Cable – PVC Insulated Flexible Control Cable

YY cable is a versatile, unshielded flexible control cable designed for use in control and signal applications in industrial environments. It features plain copper conductors, PVC insulation, and a PVC outer sheath, offering reliable performance where low mechanical stress and minimal electromagnetic interference (EMI) are present.

✅

Key Features:

• Voltage Rating: 300/500V
• Temperature Range:
•  Fixed installation: -40°C to +80°C
• Flexing: -5°C to +70°C

• Conductor: Class 5 flexible plain copper (stranded)
• Insulation & Sheath: High-quality PVC for durability and flexibility
• Core Identification: Number-coded (black with white numbers) or color-coded upon request
• Flame Retardant: According to IEC 60332-1
• RoHS Compliant

⚙️

Typical Applications:

• Industrial automation and control systems
• Machinery and mechanical engineering
• Control panels and production lines
• Conveyors and assembly lines
• Indoor use in dry or damp environments

 Note: YY cable is not shielded, so it is not suitable for environments with significant EMI (electromagnetic interference). For those applications, consider CY or SY cables.

🛠

Advantages:

• High flexibility for easy installation
• Economical solution for low-interference areas
• Wide range of core configurations and sizes available
• Suitable for light mechanical stress applications

YY Cable is a go-to choice for control wiring where mechanical protection and EMI shielding are not required. It’s widely used in factories, machinery wiring, and automation systems where clean signal transmission and flexibility are key.
